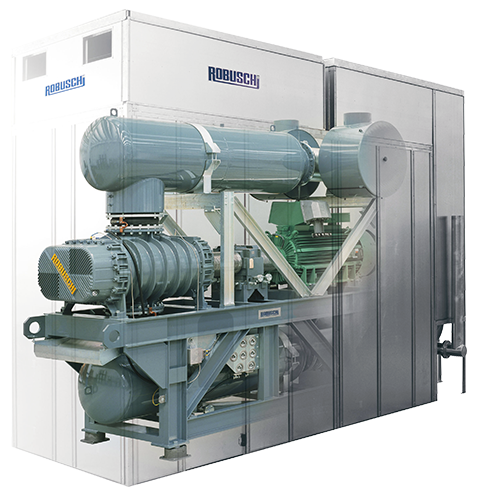

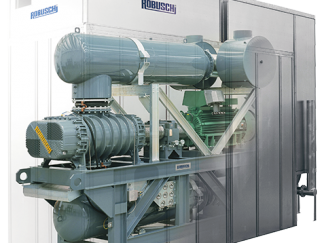

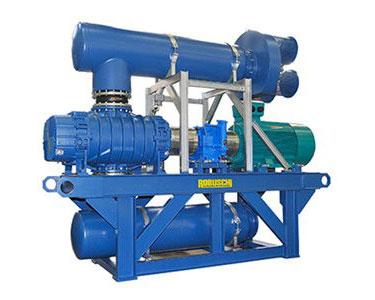

CRBS - GRBS with direct drive, up to 1000 mbar (g), 900-25000 m3/h
They are compression units for low-pressure gas transport. The compression blocks are equipped with 3-blade rotors. The drive is provided by an electric motor and belt drive (GRBS), or by direct connection with a flexible coupling, gearbox, or without (CRBS). They are equipped with all necessary accessories for reliable, safe and quiet operation.
- Overpressure up to 2000 mbar absolute
- Flow rate up to 25,000 m³/h
Input silencer
Broadband resonance chamber (reactive damper) without sound insulation material
Drive
It can be supplied with a belt drive with a tensioning device (for motors up to 250 kW), or with a direct drive with a flexible coupling or with a reduction gearbox (for motors up to 500 kW).
Output silencer
Broadband resonance chamber (reactive damper) without sound insulation material.
Safety valve
The blower assemblies are equipped with an overpressure safety valve with an appropriate end pressure setting.
Downloads
- cat_blowers_s20_03d08c-c0891.pdf [PDF, 2.19 MB]
