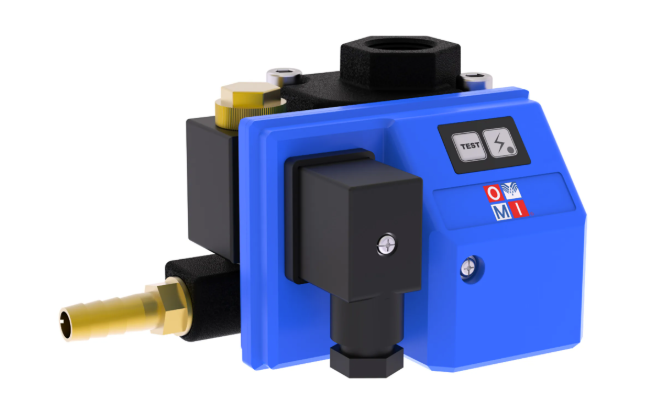

Automatic no-loss drains

OMI automatic ZERO condensate drain no loss

Electronic ZERO drains

These are “intelligent” specially designed condensate drains.

  • Low compressed air consumption thanks to capacitive condensate level control
  • Compact dimensions
  • Maximum pressure: 16 bar, compressor capacity up to 6,000 m³/h
  • Standard voltage: 230V / 1ph / 50Hz
  • Connection: ½" BSP
  • Available for different voltages on request
Type  Pressure (bar) Connection
ZERO 6 0-16 G 1/2"
ZERO 6A 0-16 G 1/2"
ZERO 60A 0-16 G 1/2"
ZERO 60A HP 0-50 G 1/2"

Catalogue ZERO.

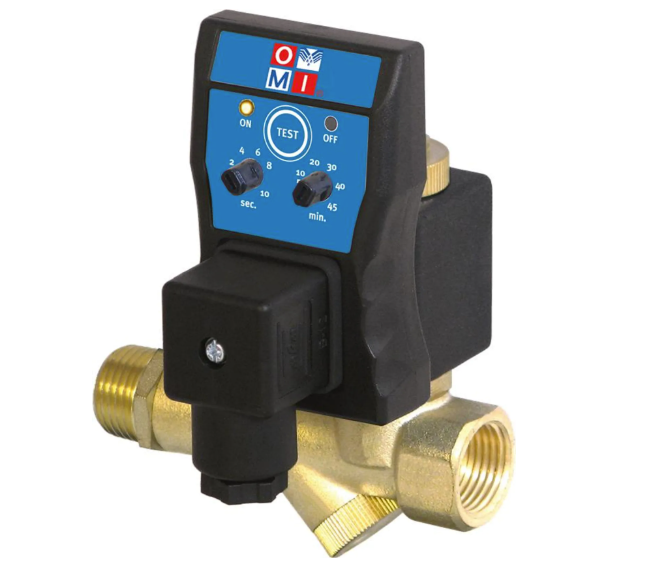

Timed Drains

Thanks to the combination of a solenoid valve and an electronic timer, they ensure reliable and simple operation with minimal maintenance. They are suitable for compressors, dryers, filters, and air receivers, featuring a robust design, high reliability, and easy installation.

Various voltage versions are available, including stainless steel versions and high-pressure versions up to 80 bar.

Timed Drains

Type  Pressure (bar) Connection
SC‑TIMED 0-16 G 3/8", 1/2"
SC‑TIMED COMBO 0-16 G 1/2"
SC‑TIMED 0-80 G 1/4"

Catalogue SC-TIMED.

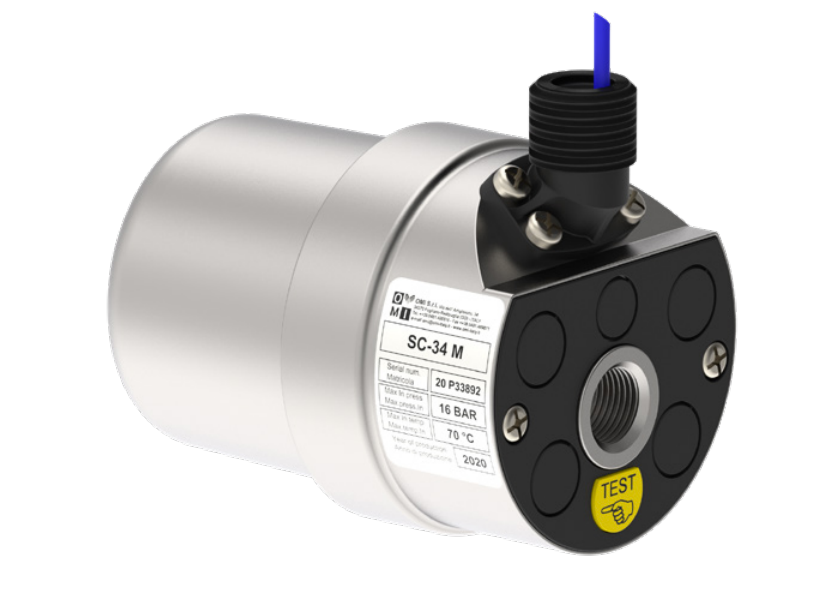

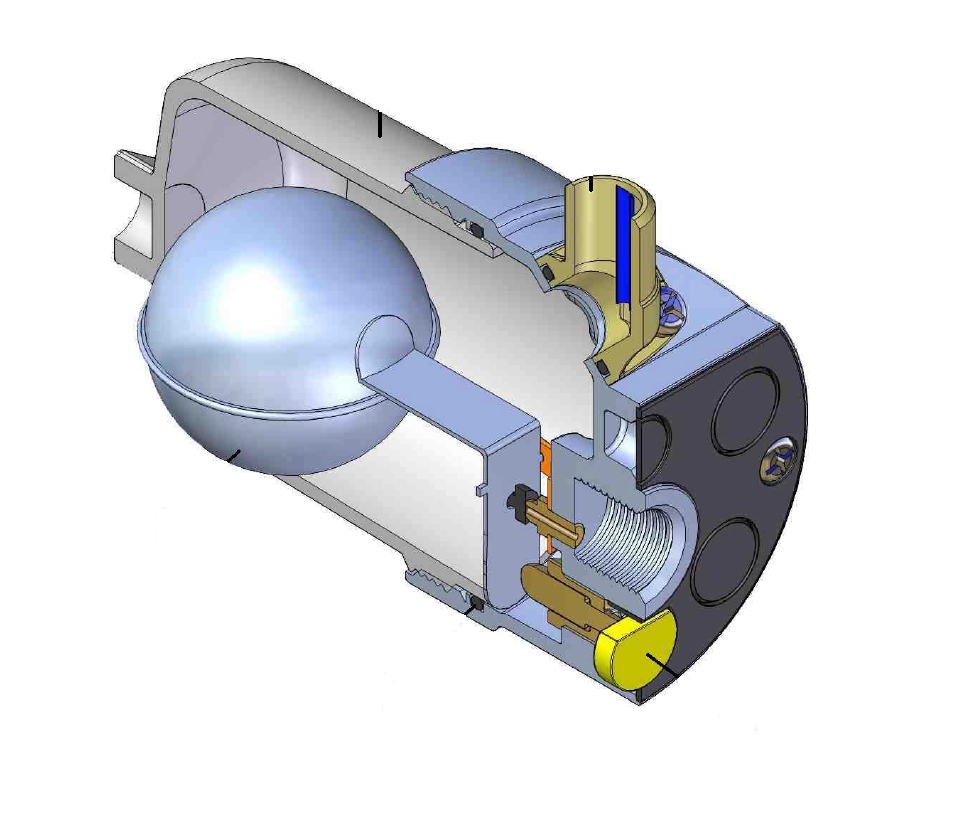

Float drains

Simple float-operated devices that ensure efficient condensate discharge once the maximum reservoir capacity is reached. Suitable for compressed air systems up to 8,000 m³/h.

Float drainsFloat drains

Type Pressure (bar) Connection
SC-12M 16 bar 1/2"
SC-34M 16 bar 3/4"

Catalogue SC-12M/34M.

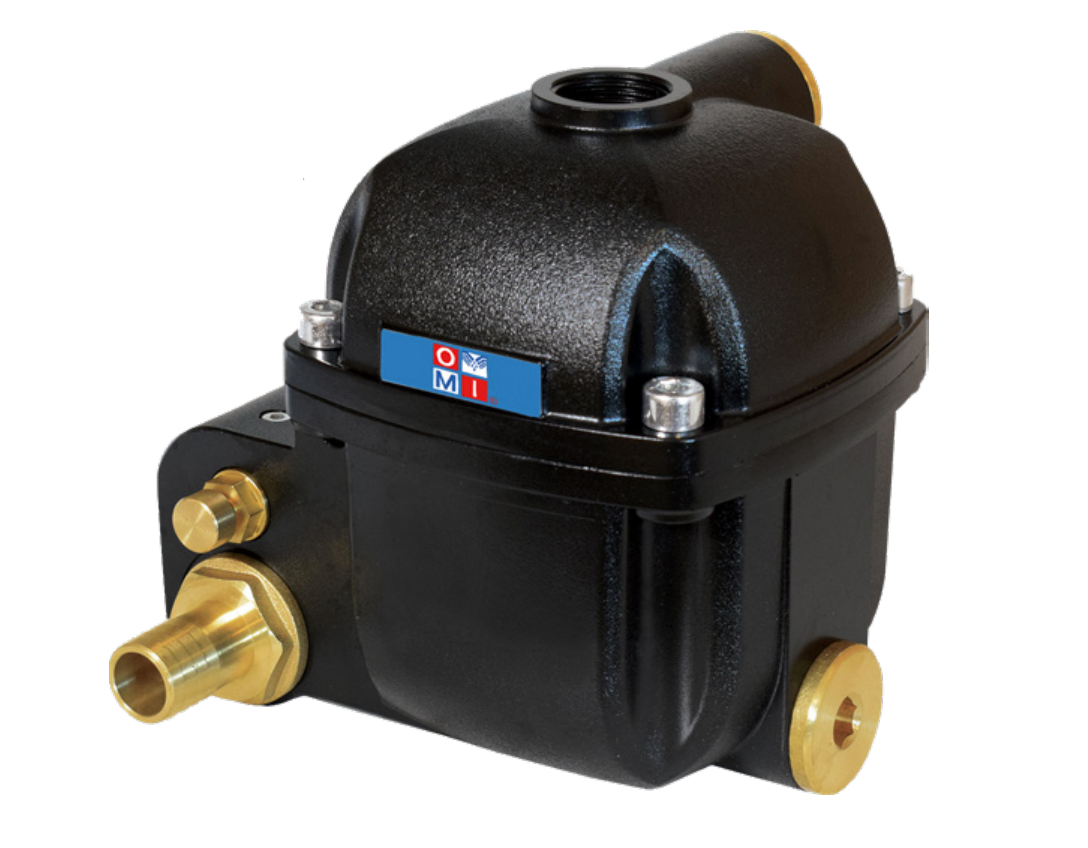

Magnetic drains

Zero-loss drains that do not require power supply thanks to the magnetic valve, ensuring maximum energy savings and high operational reliability. The robust aluminum body with anti-corrosion coating and IP68 protection rating allows use even in demanding industrial environments. Suitable for compressed air systems up to 30,000 m³/h.

Magnetic drains

Type Pressure (bar) Connection
SC-MFD 6 0-16 G 1/2"
SC-MFD 60 0-16 G 1/2"
SC-MFD 300 0-80 G 1/2"

Catalogue SC-MFD..

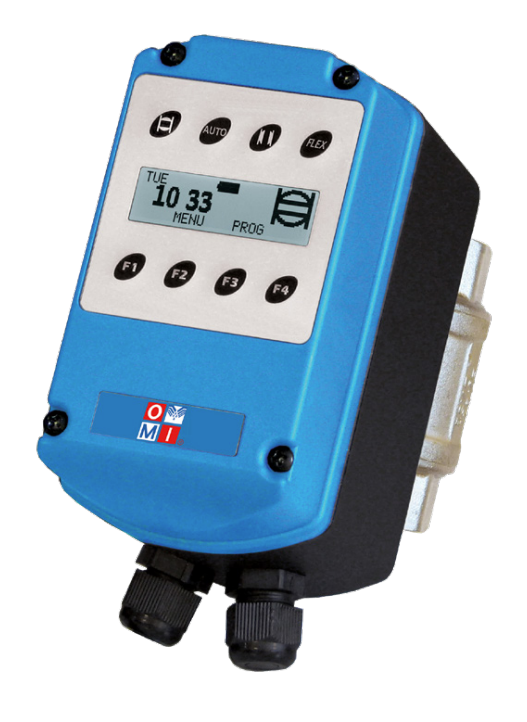

Air Saver - shut-off system for compressed air distribution systems

An intelligent shut-off system that automatically closes the air supply outside operating hours, preventing compressed air losses caused by leaks, reducing energy consumption, extending compressor service life, and helping lower operating costs.

Air saver

Type Pressure (bar) Connection
ESV 0-16 G 1", G 2"
ESV DIGITAL 0-16 G 1", G 2"

Catalogue ESV/ESV DIGITAL.
